Anti-radiation Equipment

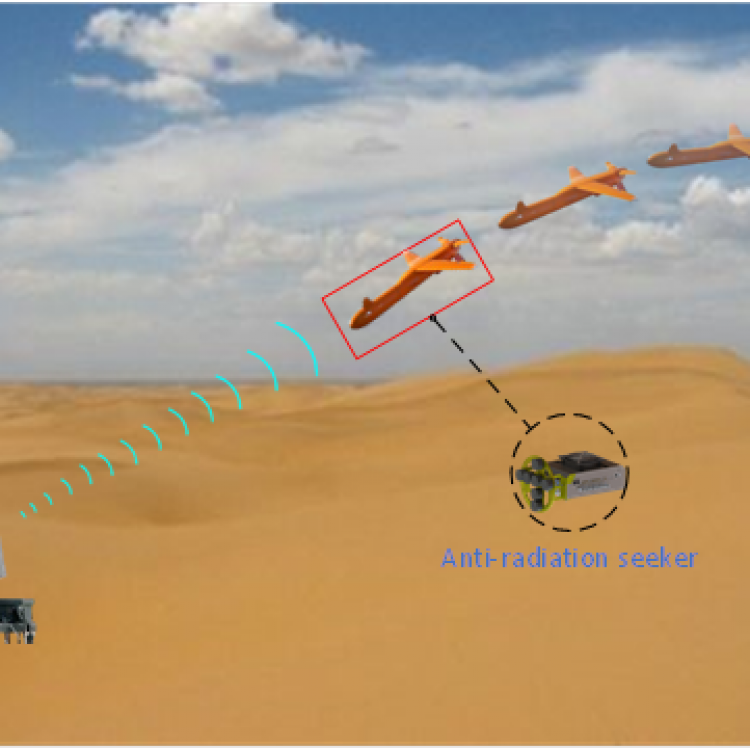

The anti-radiation seeker, usually mounted on the nose of a UAV or missile, activates during an attack on enemy targets. It detects and guides towards signals within a specified frequency band based on pre-programmed parameters, continuously providing azimuth corrections to direct the platform towards the target and aid in mission completion.

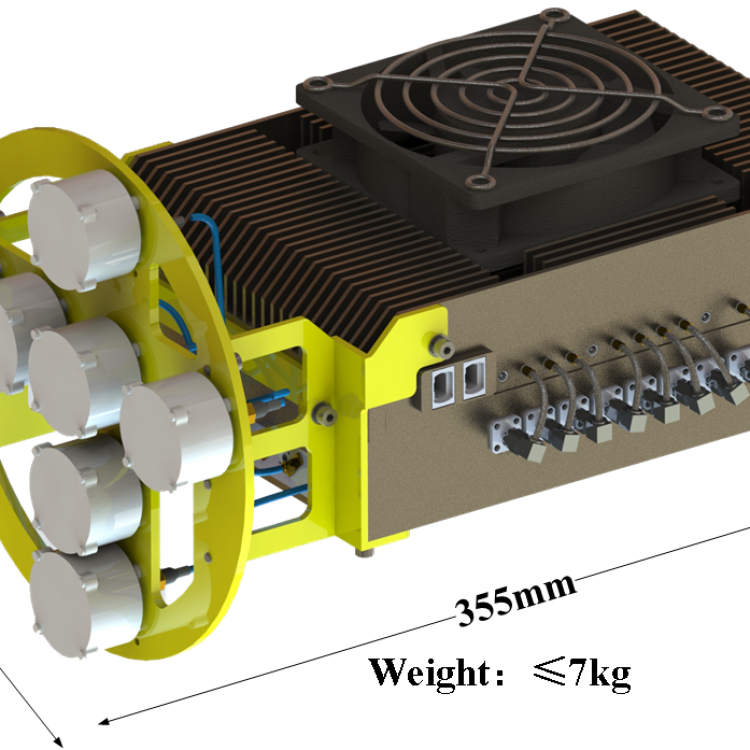

ALZC/CX-T-01

•Equipped with radar signal guidance capability;

•Equipped with anti-decoy capability;

•Operating Frequency Band: 2~18GHz;

•Instantaneous Operating Bandwidth: ≥1 GHz;

•Receiving Sensitivity:

•Better than -80dBm, for pulse width (PW) ≥1μs;

•Better than -75dBm, for 0.1 < PW < 1μs;

•Horizontal: -30°~+30°;

•Elevation: 0°~+30°;

•Direction-finding accuracy: 1° (R.M.S);

•Power Consumption: ≤300 W (supplied by platform).
