Airborne Radar EW Equipment

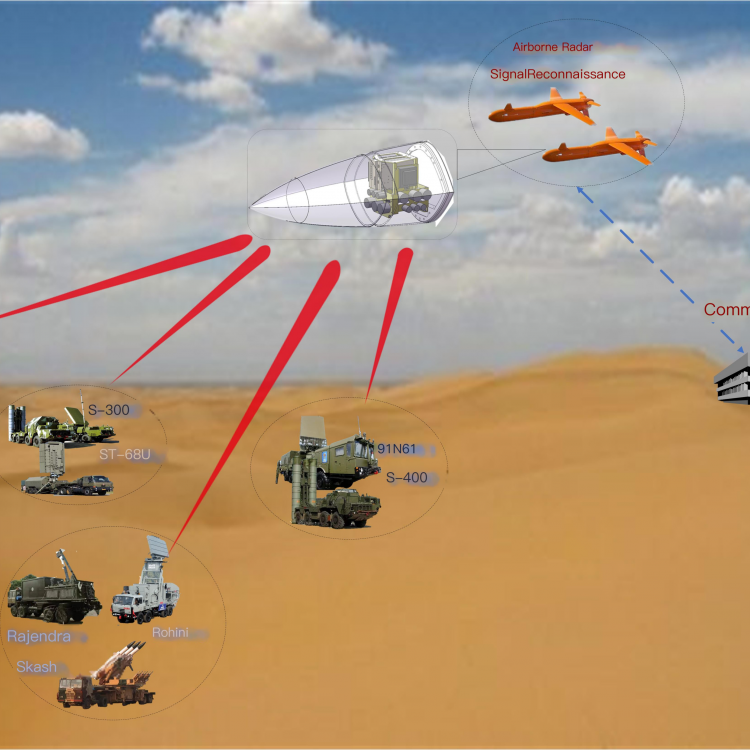

The airborne radar reconnaissance equipment is employed for the detection and positioning of enemy radars. It can obtain intelligence about enemy radars (in time domain, spatial domain and frequency domain), providing effective support for subsequent electromagnetic jamming and fire strikes.

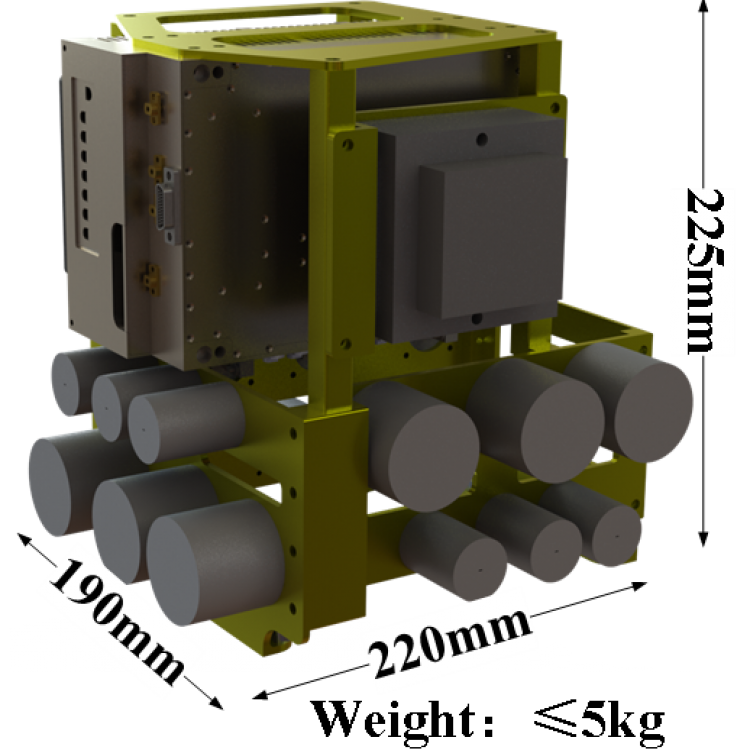

ALZC/J-A-01

•Frequency Range: 2~18GHz (Customizable);
•Instantaneous Bandwidth: ≥ 1 GHz;
•Receiver Sensitivity:
•Better than -80dBm, PW ≥ 1μs;
•Better than -75dBm, 0.1 < PW < 1μs;
•Azimuth Area (Customizable):
•Horizontal: ≥ 270°;
•Elevation: ≥ 60°;
•Effective Range:≥350km (Typical Frequency @12GHz)
•Direction Finding Accuracy: 2° (R.M.S);
•Power Consumption: ≤ 120 W (powered by platform).

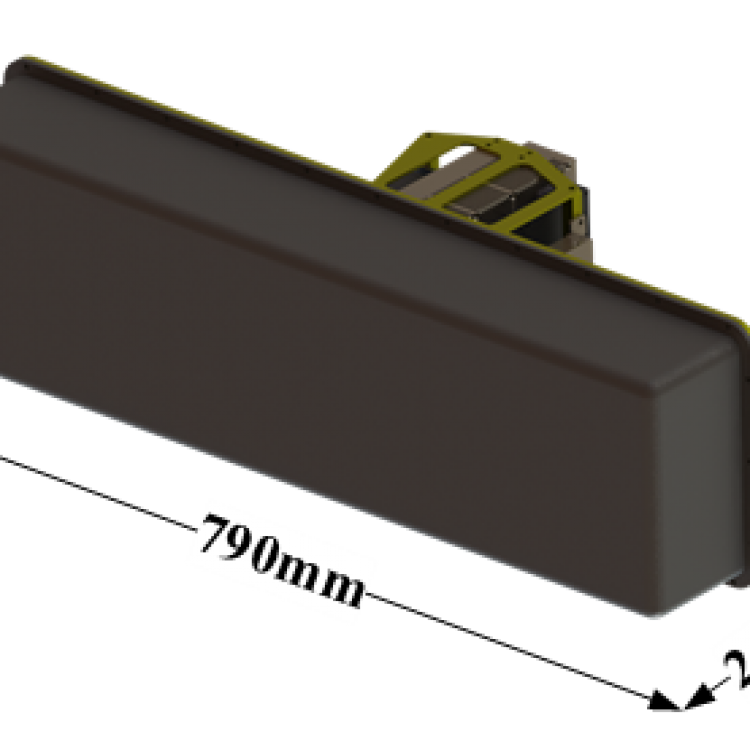

ALZC/J-A-03

•Frequency Range: 0.38~2GHz (Customizable);
•Instantaneous Bandwidth: ≥ 1 GHz;
•Receiver Sensitivity:
•Better than -75dBm, PW ≥ 1μs;
•Better than -70dBm, 0.1 < PW < 1μs;
•Azimuth Area(Customizable):
•Horizontal: -45°~+45°; Elevation: 0°~+30°;
•Direction Finding Accuracy: 5° (R.M.S);
•Effective range:≥500km (Typical Frequency @2GHz)
•Power Consumption: ≤ 120 W (powered by the platform).

ATZC/CX-T-01

• Frequency Range: 30MHz–18GHz;

• Instantaneous Operating Bandwidth: 80MHz, 200MHz, 1GHz;

• Receiver System Sensitivity: ≤ -110dBm;

• Reconnaissance Beam Coverage: 360° horizontal, ±20° elevation;

• Direction-Finding Accuracy: Better than 2.5° (R.M.S.);

• Weight: ≤ 9kg;

• Power: ≤ 300W;

• Multi-Channel Monitoring: ≥ 20 channels;

• Reconnaissance Range: 80km (against ground targets);

• Supported Signal Types: Communication signals, Radar signals, Data link signals, Satellite communication signals, Battlefield wireless network signals, IFF (Identification Friend or Foe) signals, TACAN signals, Civilian signals, Cluster signals, etc.

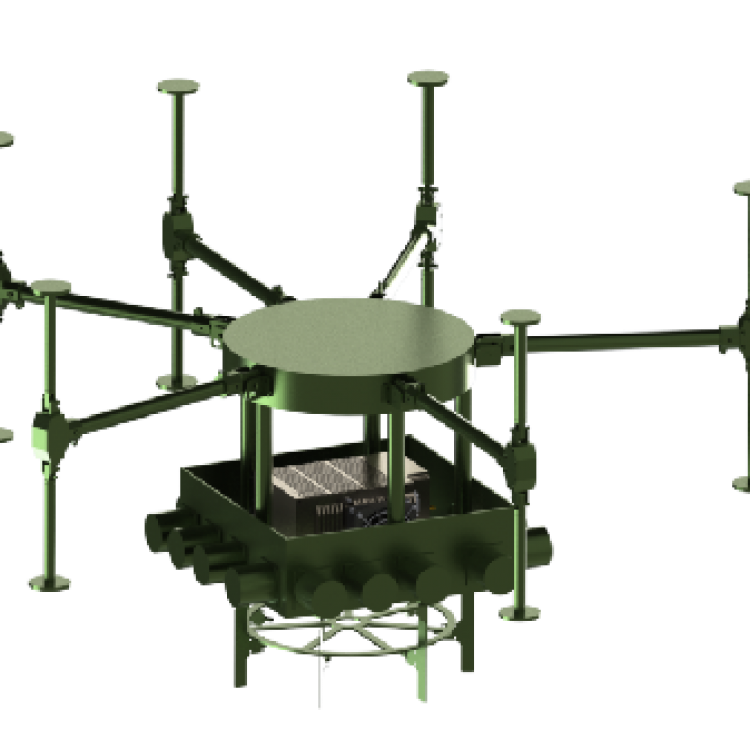

ALGRJ-2/18GHz

•The device possesses capabilities for reconnaissance, direction-finding, and jamming;
•Operating Frequency Range: 2~18GHz (customizable);
•Instantaneous Bandwidth: 2GHz;
•System’s Receiving Sensitivity: ≤-60dBm;
•Direction-finding Accuracy: ≤15° (Root Mean Square, R.M.S);
•Surveillance Airspace Coverage: Horizontal: 360°; Vertical: -45° to +15°;
•Jamming Airspace Coverage: Horizontal: 90° (adjustable up to 360°); Vertical: -90°;
•Effective Radiated Power (ERP): ≥100W (customizable);
•Adaptable to Signal Density: 500,000 pulses per second (pulses/sec);
•Jamming Techniques: Noise jamming, Deception jamming, and Composite jamming;
•Power Consumption: ≤160W;
•Dimensions: 200mm x 200mm x 80mm;
•Weight: ≤5kg.
