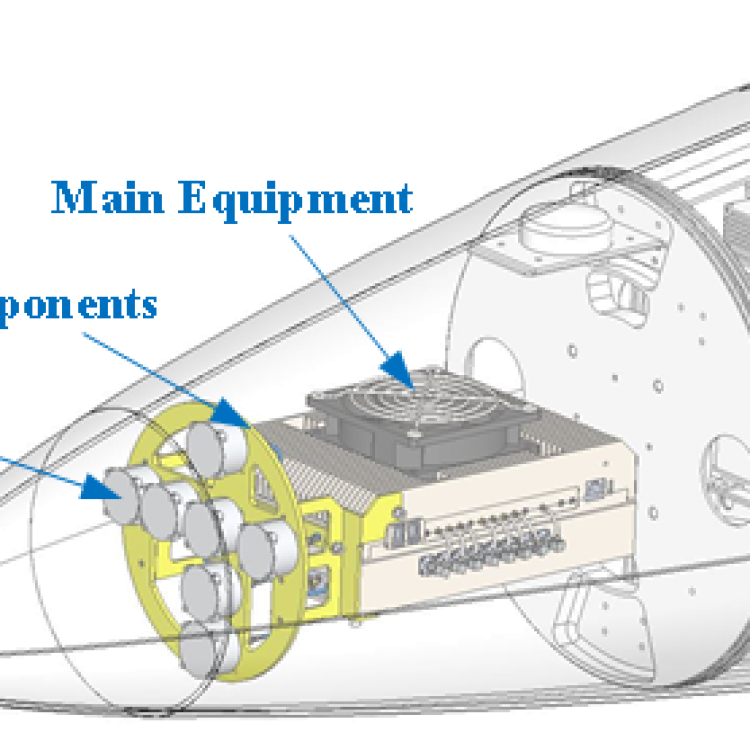

4.1    Overview

    The BP-2/18GHz-1G microwave  frequency  conversion module  incorporates  a high- precision frequency conversion local oscillator. It features one down-conversion channel capable of converting RF signals within the 2~18GHz range to a lower intermediate frequency band for processing by a digital storage frequency circuit. Additionally, two independent up-conversion channels can restore the processed intermediate frequency signals back to the 2~18GHz RF frequency band. This frequency conversion module also provides an external high-precision clock signal.

4.2    Technical Specifications

    1)   Operating Frequency: 2~18GHz;

     2)   Intermediate Frequency:1.3~2.3GHz;

     3)   Instantaneous Bandwidth: 1GHz;

     4)   Number of Receiving Channels:1

     5)   Number of Transmitting Channels:2

     6)   Received Power Range: -65~+15dBm;

     7)   Output Power: 0±4dBm;

     8)    Supply Voltage: 19~31V;

     9)   Power Consumption:  ≤40W;

    10) Dimensions:  ≤112mm  × 155 mm  × 58 mm;

    11) Weight: 1.7Kg.
