Parameters for Escort Support Jamming Capability:
• Frequency Range: 2～18GHz;
• Instantaneous Operating Bandwidth: ≥1GHz;
• Receiving System Sensitivity: ≤-65dBm;
• Effective Radiated Power: ≥20W (customizable);
• Beam Coverage: Horizontal 50°, Elevation 30°;
• Jamming Mode: Noise jamming, Deception jamming, and Combined jamming.

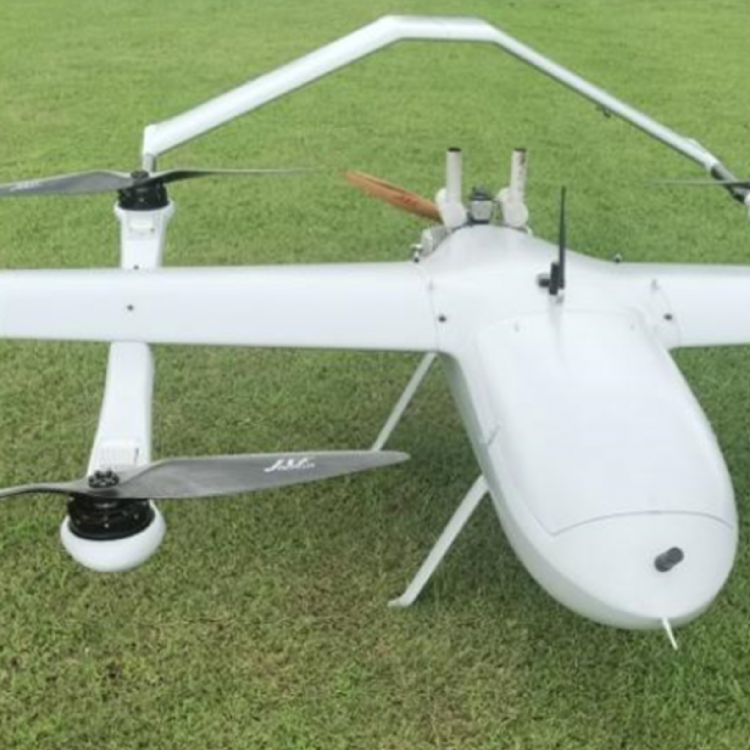

System Parameters:
• Wingspan: 4800mm;
• Length: 2580mm;
• Endurance: ≥2 hours;
• Cruising Speed: 100km/h~120km/h;
• Maximum Flying Speed: 150km/h;
• Practical Ceiling: 4500m.

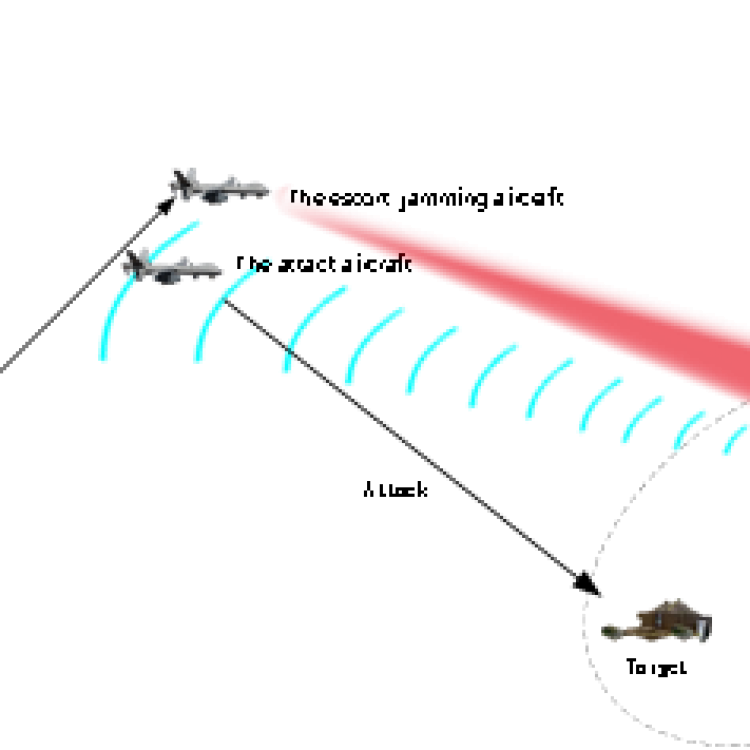

Users can form a formation with the attack aircraft and the escort support jamming aircraft. The attack aircraft follows the jammer aircraft along the same flight path towards the "target." Based on radar characteristics, the distance between the two aircraft is maintained within the same radar beam to ensure the jamming signal enters through the main lobe. The jammer begins operating immediately upon receiving the radar signal, fulfilling the requirement for covering and supporting the team.
