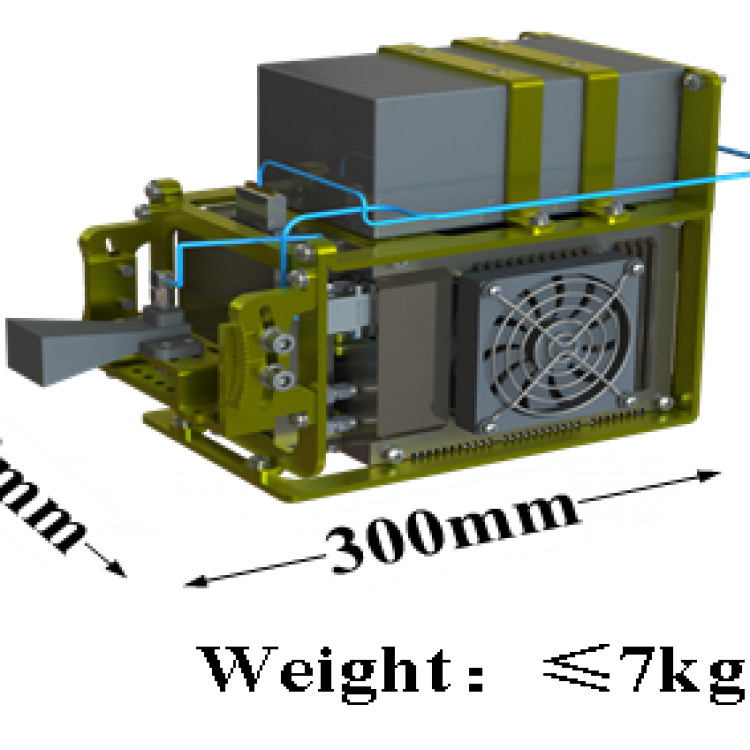

• Operating Frequency Band: 2~18GHz (Customizable);
• Receiving Instantaneous Bandwidth: 12GHz;
• Jamming Instantaneous Bandwidth: 1GHz
• Sensitivity of Receiving System: ≤-65dBm;
• Effective Range Reception:≥150km
• Application Profile: Conducting team jamming against ground guidance and airborne fire control radar;
• Effective Radiated Power: ≥10W (Customizable);
• Antenna Beam Width: ≥90° ×60° (Customizable);
• Jamming Mode: Noise jamming, Deception jamming and Combined jamming;
• Communication Mode: Communication through the target link, RS 422 interface;
• Power Consumption: ≤200W;
• Endurance Time: ≥45min (powered by battery).
• Frequency Range: 30MHz–18GHz;
• Instantaneous Operating Bandwidth: 80MHz, 200MHz, 1GHz;
• Receiver System Sensitivity: ≤ -110dBm;
• Reconnaissance Beam Coverage: 360° horizontal, ±20° elevation;
• Direction-Finding Accuracy: Better than 2.5° (R.M.S.);
• Weight: ≤ 9kg;
• Power: ≤ 300W;
• Multi-Channel Monitoring: ≥ 20 channels;
• Reconnaissance Range: 80km (against ground targets);
• Supported Signal Types: Communication signals, Radar signals, Data link signals, Satellite communication signals, Battlefield wireless network signals, IFF (Identification Friend or Foe) signals, TACAN signals, Civilian signals, Cluster signals, etc.
Parameters for Escort Support Jamming Capability:
• Frequency Range: 2～18GHz;
• Instantaneous Operating Bandwidth: ≥1GHz;
• Receiving System Sensitivity: ≤-65dBm;
• Effective Radiated Power: ≥20W (customizable);
• Beam Coverage: Horizontal 50°, Elevation 30°;
• Jamming Mode: Noise jamming, Deception jamming, and Combined jamming.
System Parameters:
• Wingspan: 4800mm;
• Length: 2580mm;
• Endurance: ≥2 hours;
• Cruising Speed: 100km/h~120km/h;
• Maximum Flying Speed: 150km/h;
• Practical Ceiling: 4500m.
Users can form a formation with the attack aircraft and the escort support jamming aircraft. The attack aircraft follows the jammer aircraft along the same flight path towards the "target." Based on radar characteristics, the distance between the two aircraft is maintained within the same radar beam to ensure the jamming signal enters through the main lobe. The jammer begins operating immediately upon receiving the radar signal, fulfilling the requirement for covering and supporting the team.
Electronic Reconnaissance Capability Parameters:
•Frequency Range: 2～18GHz;
•Instantaneous Operating Bandwidth: ≥1GHz;
•Receiving Sensitivity: Better than -75dBm;
•Coverage: Horizontal: ≥270°; Vertical: ≥60°;
•Direction-finding Accuracy: ≤2° (R.M.S).
System Parameters:
•Wingspan: 4800mm;
•Length: 2580mm;
•Endurance: ≥2 hours;
•Cruising Speed: 100km/h~120km/h;
•Maximum Flying Speed: 150km/h;
•Practical Ceiling: 4500m.
After takeoff, the electronic warfare reconnaissance aircraft follows the designated route into the reconnaissance area to perform signal acquisition and interception. The route is safe from enemy fire and can be repeated. The aircraft's receiver is highly sensitive, allowing it to intercept weak enemy signals from long distances more effectively than ground or maritime platforms, especially in high-alert situations.
